Enable stable transport

DNP's Cover Tapes

Cover tape is used to seal carrier tape that transports electronic components and semiconductor products. DNP's cover tape is available in grades for embossed carrier tape and paper carrier tape, and has been used worldwide in the electronic components and semiconductor industries for over 20 years.

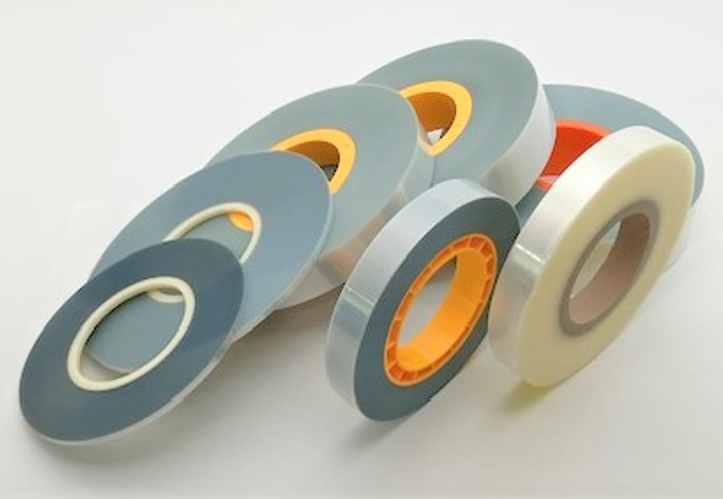

Product photo of DNP's cover tape



Table of contents



Features of cover tape for embossed carrier tapes

DNP's cover tape is used to seal embossed carrier tapes (materials for transporting electronic components and semiconductor parts). With its stable sealing strength, it prevents the tape from peeling off during assembly and ensures that the products do not pop out. As a result, it is widely used for various products, including connectors, quartz crystal units, LEDs, switches, capacitors, coils, resistors, and semiconductors (analog ICs, logic IC, memory).

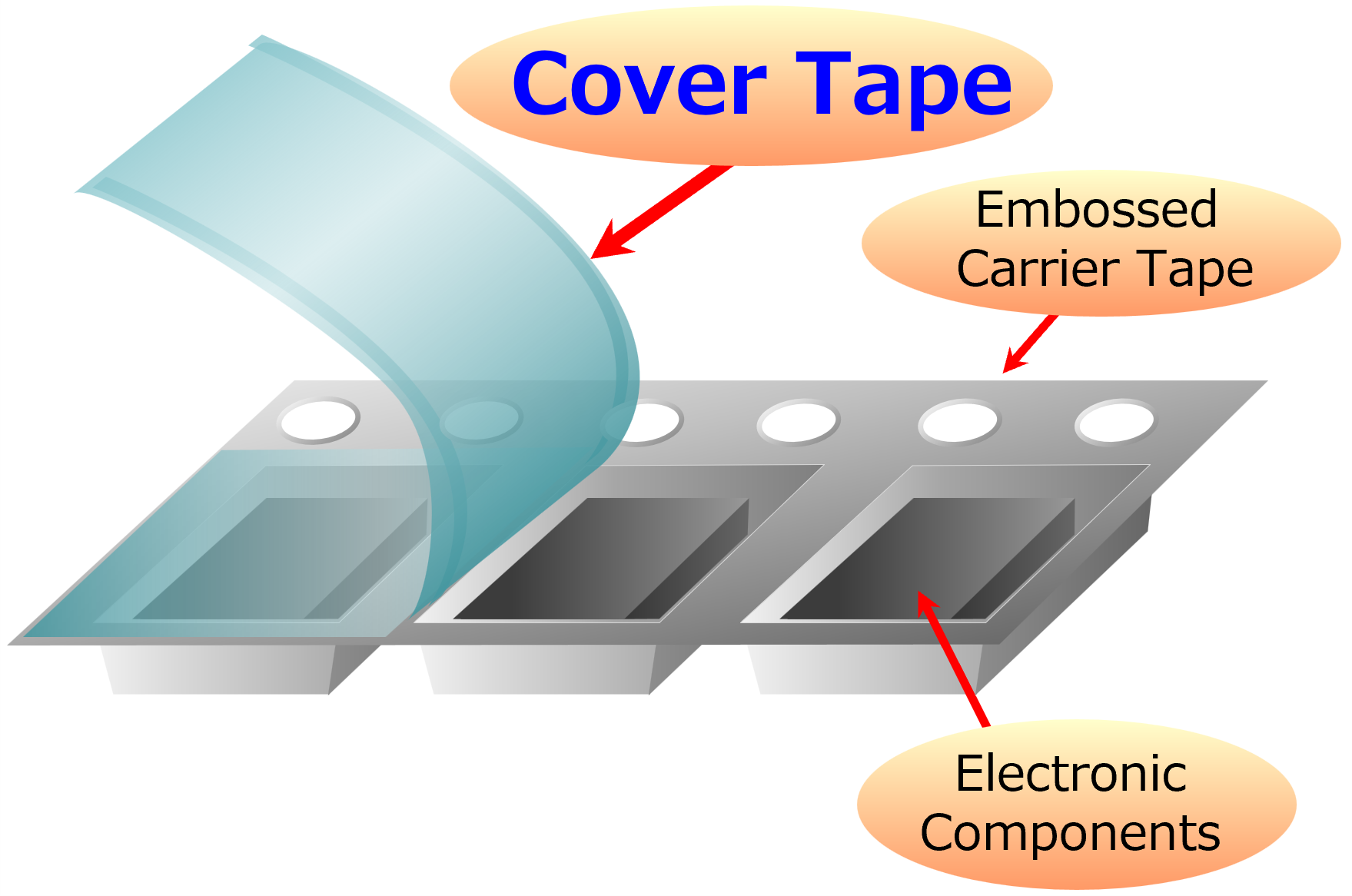

This is an image illustration of cover tape for embossed carrier tapes.





You can clearly see the contents through the cover tape,because our products are highly transparent and have excellent visibility.
This helps prevents false detections by inspection equipment and maintains productivity during mass production.

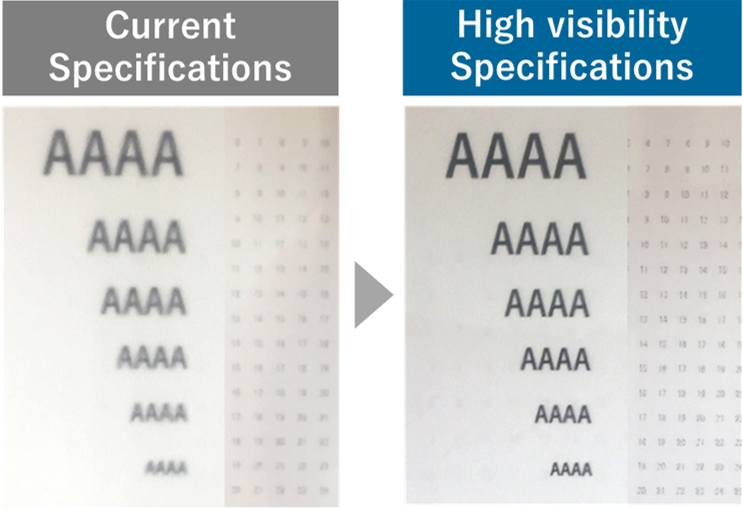

A comparison photo shows that the improved cover tape outperforms our standard one in terms of transparency.





Product lineup of cover tapes for embossed carrier tapes

DNP has a product lineup of cover tapes that can be used in a wide range of sealing temperature conditions and with various carrier tape materials (PC, PS, A-PET, PP).
 ※The table below shows a selection from our product lineup.

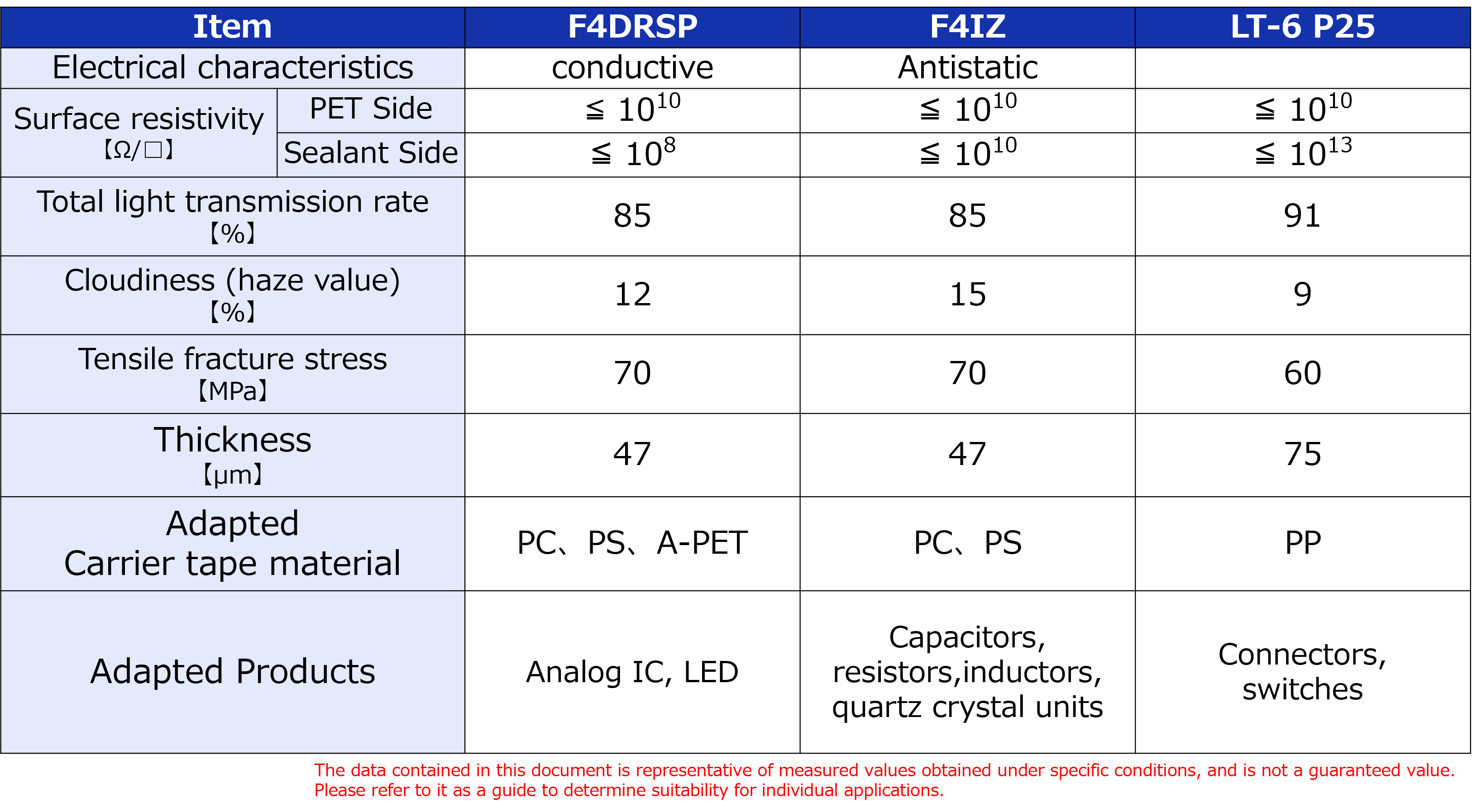

This is the product lineup of DNP's cover tape and the physical property data measured within DNP. This shows the surface resistivity, total light transmission rate, Cloudiness(haze value), tensile fracture stress,thickness, adapted carrier tape material and applicable products.




Features of cover tape for paper carrier tapes

Cover tape for paper carriers is called top tape. Top tape is used to seal paper carrier tape that transports electronic components and semiconductor products.
It is used for a wide range of products, including multilayer ceramic capacitors(MLCC), piezoelectric elements, inductors (coils), and varistors.

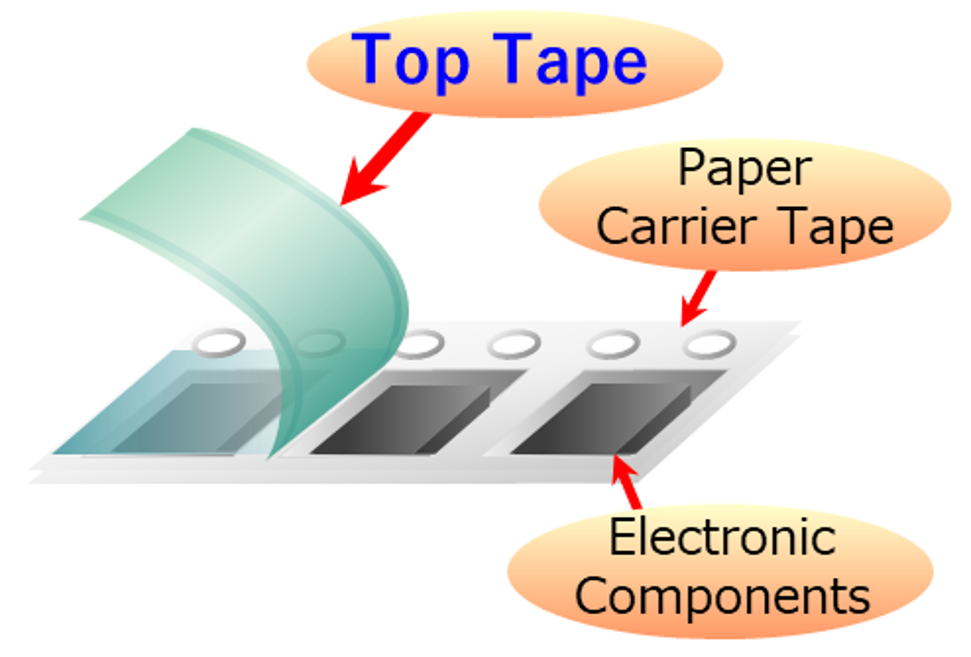

This is an image illustration of cover tape for paper carrier tapes




DNP's top tape experiences minimal changes in surface resistivity and peel charge voltage even after being exposed to environmental stress (high temperature and humidity).
This reduces the risk of products sticking to the cover tape or popping out during the assembly process.

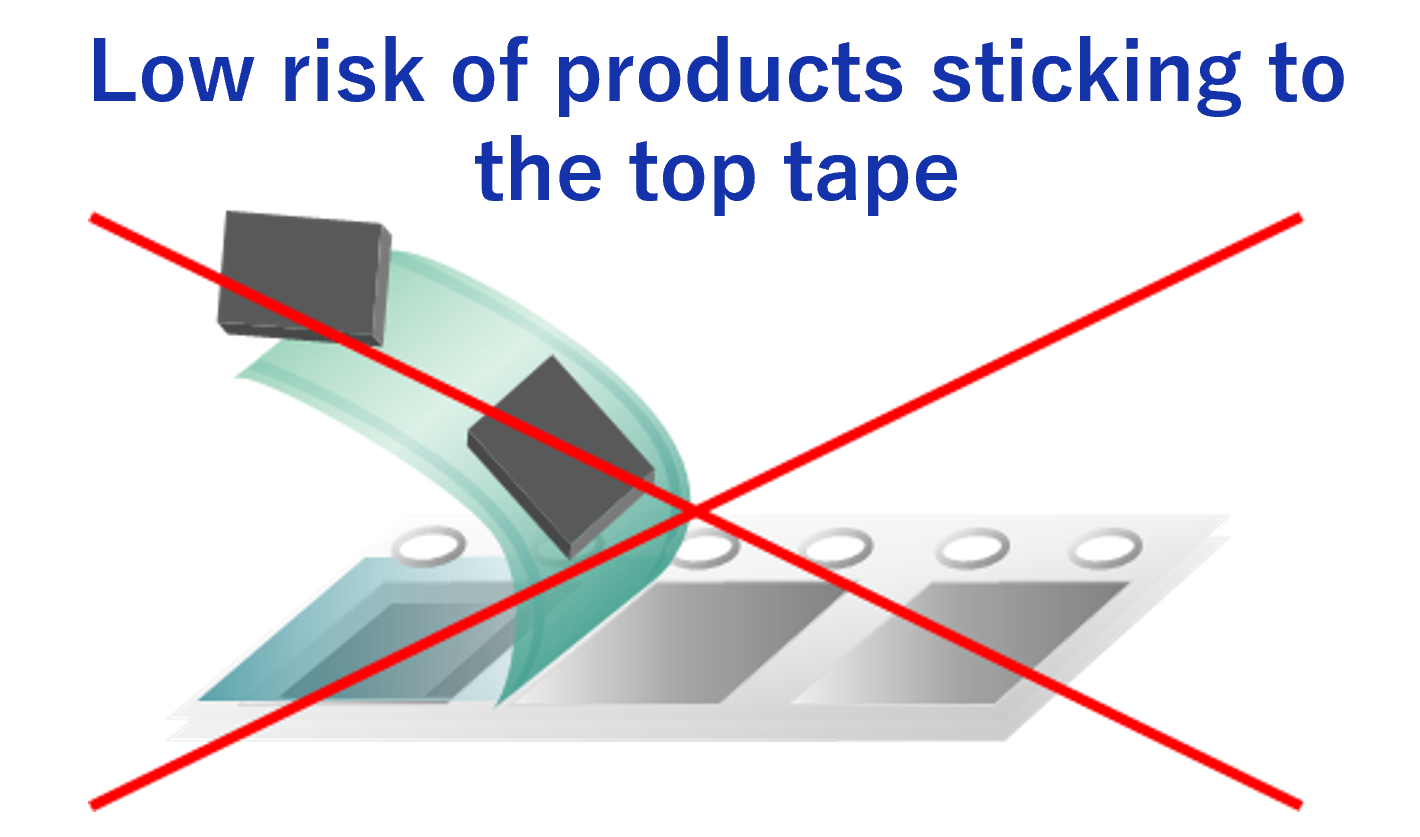

This is an illustration showing the features of DNP's top tape.DNP’s top tape is characterized by its low risk of products sticking to it.





You can be confident about exporting them to hot and humid regions or transporting them by sea for long periods of time, because our products are not affected by high temperatures or high humidity.

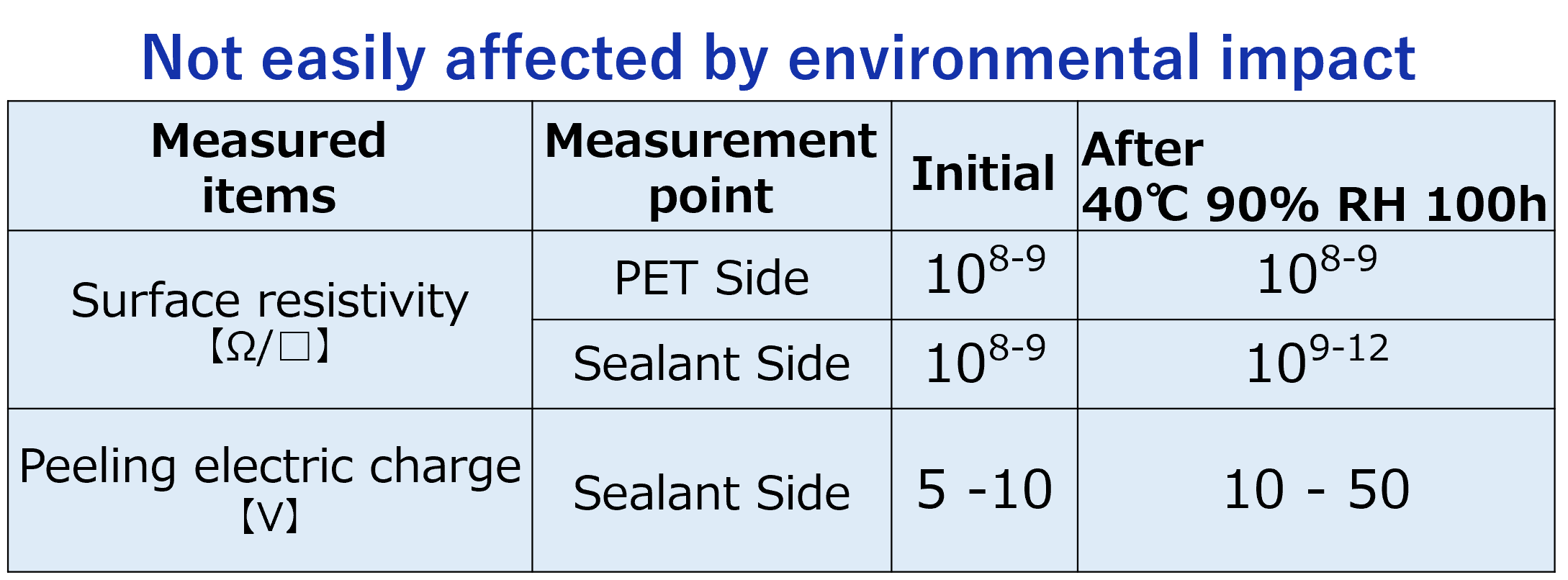

This is a table showing the features of DNP's top tape.DNP's top tape shows almost no change in surface resistivity and peeling electric charge before and after environmental testing.





FAQ





Sample request

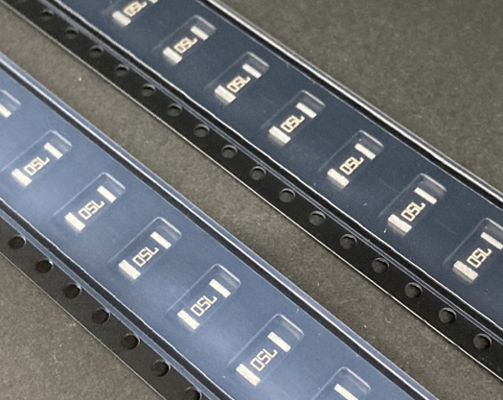

Free sample product images

We have free DNP's cover tape and top tape samples available for you.
Please evaluate the transparency, high visibility, and peeling stability.
 ※Please note that we may decline applications from companies in the same industry.

Please apply using the contact form below.
We will confirm the quantity to be sent and other details by e-mail before shipping.






Technical document download

Technical document image

You can download technical documents that describe the sealing characteristics of DNP's cover tapes.
