DNP CX-D80 Retransfer Card Printer

Card Printer

DNP CX-D80 Retransfer Card Printer is the culmination of the technological development and is innovative card printer available for all types of card-issuing applications. Succeeding to DNP CX printers which have been widely adopted, CX-D80 has a thermal retransfer-printing engine, of which quality and reliability are acclaimed by users worldwide. Ideal for gift cards, on demand ID cards and for corporate and governmental ID card, CX-D80 provides the integration of proven, long-established technology with a compact and user-friendly body.

Image of card printer unit

See 11 related fields

Products

Card printer

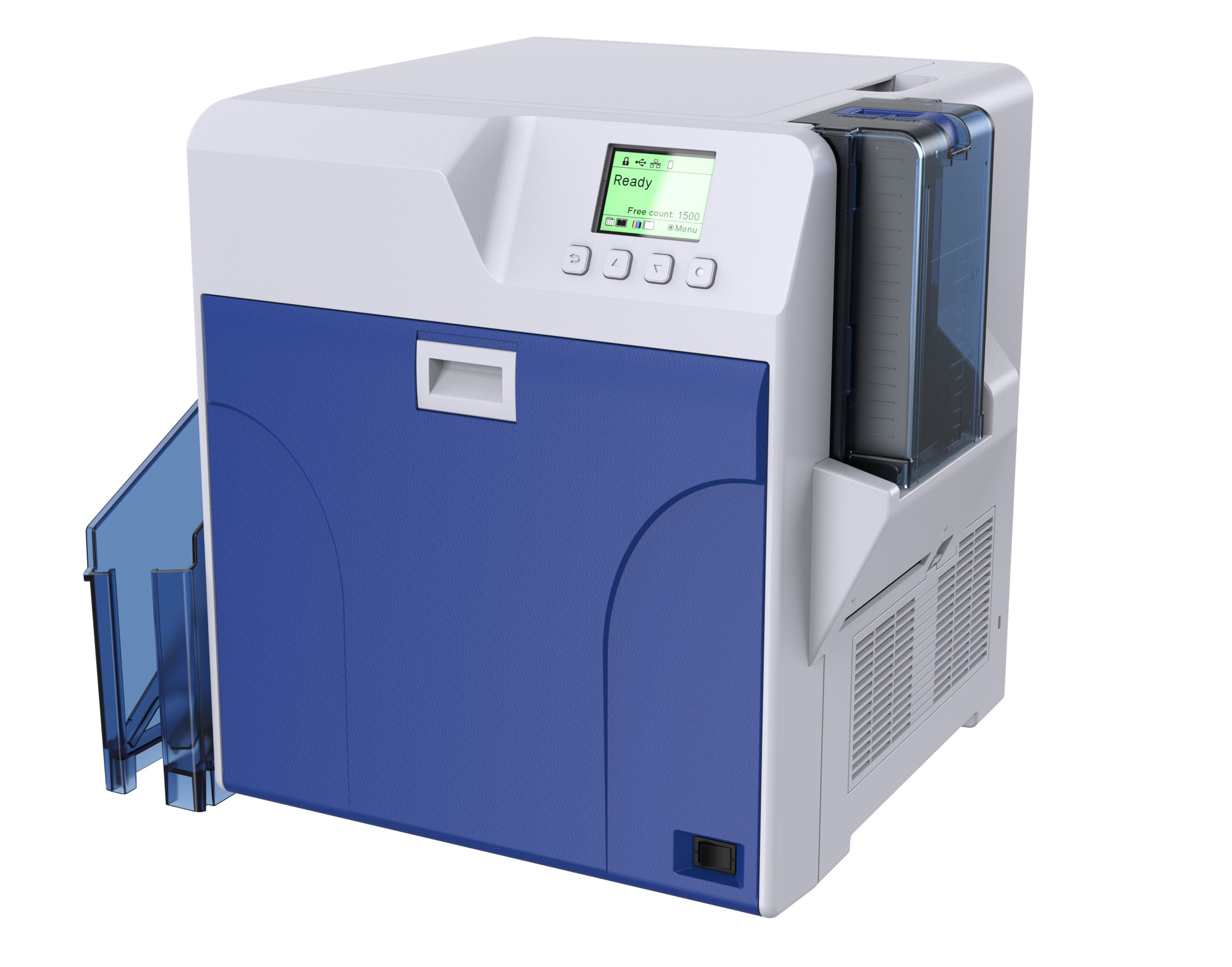

image of card printer

CX-D80HS

  • -Resolution: 600 dpi
    -Double side

CX-D80SRS,CX-D80DS

  • -Resolution: 300 dpi
    -CX-D80DS : Double side
    -CX-D80SRS: Single side, Bend remedy unit is originally insatlled
  • Product features

    -Perfect edge-to-edge printing with glossy photo finish quality
    -Damage-free printhead by retransfer method
    -Ideal for contact/contactless card and non PVC card
    -Single or Double side model available
    -Highest capacity YMCK ribbon (1,000 images), less frequency of reloading
    -Electronic (hopper & front door), and Kensinghton locks installed
    -Smart body & design suitable for every location
    -Intellectual Status Monitor Program to see the printer status
    -User-friendly accessories to keep the printer clean
    -Optional laminating module (CL-600S, CL-600D) connectable

Spec

Printing Method Dye sublimation/Resin Thermal Retransfer
Printable area Full-bleed (edge-to-edge)
Print speed 30 sec : YMCK on single side
Interface ・USB2.0(Ver2.0) Full-speed(12Mbps) / Hi-speed(480Mbps)
・10BASE-T/100 BASE-TX Ethernet
Card Type PVC, Composite PVC, PET-G, ABS, etc*
Input & Output Capacity 100 cards each (0.76mm thickness)
Dimension W343 x D322 x H335 (mm)
Weight 13.0kg (Single side with no optional unit)
Power Supply Maximum 3A (100 to 120V), Maximum 1.5A (220 to 240V)
Operating Environment 15℃ – 30℃, 35% – 70% non condensing humidity
Ink ribbon YMCK, YMCKK, YMCKUv, YMCKPo
Options Magnetic stripe encoding, Contact chip encoding, Contactless IC encoding, Bend remedy Unit, Laminatioin unit(CL-600)
Safety Standard/Regulation FCC, CE, UL, VCCI-B, FCC Class B, EN Class B, RoHS, CCC

Ink ribbon

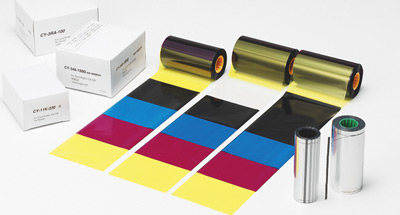

Image of ink ribbons

  • DNP, known as one of the world famous dye sublimaion ink ribbon manufacturer, has developped the ink ribbon for DNP CX-series card printer. Unique, and lateral card-conveyor system makes one of the largest capacity in its class. In addition, RFID tag installed in the ribbon enables you to check the status such as ribbon type and remaining amount on Status monitor at sight.

Ink ribbon lineup

Product name Product code Number of images per set/roll
YMCK Ink ribbon set CY-P340A-DS 1,000 images/set
YMCKK Ink ribbon roll CY-35K-75DS 750 images/roll
YMCKUv Ink ribbon roll CY-35U-75DS 750 imafes/roll
YMCKPo Ink ribbon set CY-P35A-DS 750 images/set
Re-transfer film CY-3RA-100 1,000 images/roll

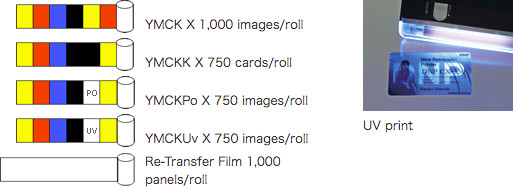

Additional image for ink ribbons

Laminator

CL-600S/CL-600D
CL-600S: Sigle side laminator
CL-600D: Double side laminator

image of card laminator

  • Product features

    -Single side (CL-600S) and Double side (CL-600D)
    -Simultaneous dual lamination with two cartridges (CL-600D)
    -Improved function of patch-positioning adjustment in every direction
    -Easy installation with CX-D80 by infrared communication
    -Electronic (front door), and Kensinghton locks installed
    -In accordance with application, various types of laminating media is available
    -Customised hologram design with security features can be provided
    -Smart body & design suitable for every location
    -Intellectual status monitor program to see the laminator status

Spec

Laminating method Thermal roller transfer
Laminating side Single sided (CL-600S), Double sided (CL-600D)
Laminating speed 16 – 36 sec per card : single, and double sided
Connection Infrared communication with CX-D80
Temperature config 90℃ – 180℃ (adjustable on 5℃ basis)
Speed config 3 mm/s - 12 mm/s (adjustable on 0.5 mm/s basis)
Dimension W210 x D333 x H360 (mm)
Weight CL-600S: 8.5kg CL-600D: 9.5kg
Power Supply Maximum 3A (100 to 120V), Maximum 1.5A (220 to 240V)
Operating Environment 15℃ – 30℃, 35％ – 70％ non condensing humidity
Laminating media 1.0/0.6mil patch, 1.0/0.6mil smart card patch, overlay foil
(Clear or holographic selectable for all the media)

Laminate ｍedia

Image of laminator unit and laminate media

  • For CL-600, we are offering mainly two types of media: patch film and overlay foil.

    1.0/0.6 mil patch film is the best solution to give all-round durability against abrasion, water & humidity, and UV light that may damage and deteriorate the printed image.
    By adding an arbitrary hologram on a patch by customization, it is possible to make completely unique and secure card in terms of anti-counterfeit as well as physical protection.

    Overlay foil has almost same durability against water & humidity and UV light as patch.
    Little durability against abrasion, but it is possible to transfer the hologram on the whole area of card unlike patch film(2mm space around) and best suited for card decoration.
    DNP has one generic hologram design for overlay, and surely possible to make your own hologram design for it.

Laminate media lineup

Product name Product no. Number of images
Clear full area 1.0 mil patch CY-R10FC-60F 600 images/roll
Clear full area 0.6 mil patch CY-R06FC-60F 600 images/roll
Clear smart card cut 1.0 mil patch CY-R10SC-60F 600 images/roll
Clear smart card cut 0.6 mil patch CY-R06SC-60F 600 images/roll
DNP Generic hologram overlay foil CY-R00RD-100 1,000 images/roll

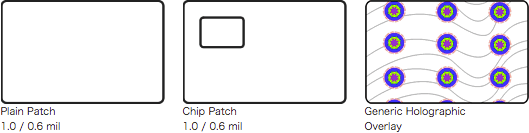

Image of laminate media
